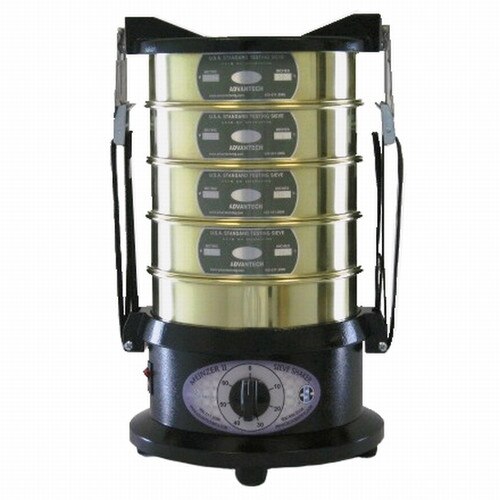

Advantech Meinz110 Meinzer II™ Economy 110V/60Hz Sieve Shaker with Integral Timer
- 10-Inch diameter footprint. Height: 7-Inches (excluding sieve stack); Weight: 36Lbs.
- 8-Inch Sieves: Holds eight full height sieves or fifteen half-height sieves | 3-Inch Sieves Holds twelve full height or twenty-three half-height sieves
- Utilizes electromagnetic drive and fixed amplitude the Meinzer II produces a vibration speed of 3600rpm with 2mm horizontal orbital throw & 3mm vertical throw
- Ideal for use with sand, cements, chemicals, powder metals, cosmetics, grains, seeds, coal, soils, pharmaceuticals, tobacco, coffee and many other dry components
- Includes mechanical timer with 60-minute range. Auto Shut-Off or Continuous runs. Includes 1-Year limited warranty
- Sold Individually
- Manufacturer Part No: Meinz110
PLEASE NOTE: Product images and descriptions may not exactly represent the product. Prior to making your purchase, please confirm that the manufacturer part number shown above matches the product you seek. Returns are not allowed for such differences if the correct manufacturer part number is shipped.
Details
This Model Meinz110 Meinzer test sieve shaker by Advantech® has a vibration speed of 3600 per minute, producing a 2mm horizontal orbital throw and a 3mm vertical throw. The maintenance free, lightweight and portable unit has a rugged construction providing precise repeatable results time after time. It can hold eight 8 inch (200mm) diameter full height sieves, or fifteen half-height sieves plus the pan and cover. It can hold twelve 3 inch diameter full height sieves or twenty-three half-height sieves plus pan and cover. By utilizing an electromagnetic drive, a fixed amplitude and rubber spring mounts, this unit produces the simultaneous vertical and horizontal movement needed for basic dry particle sizing analysis. This unit is ideal for use with sand, cements, chemicals, powder metals, cosmetics, grains, seeds, coal, soils, pharmaceuticals, tobacco, coffee and many other dry components in ground, granular, or powder form. The Meinzer II has no moving parts, a small 10 inch footprint and weighs only 36 lbs. It is quiet and easy to use making this unit ideal for a variety of environments and quality control applications. It has a mechanical timer ranging from 1 to 60 minutes which can be set for auto shut off or continuous run. Less wear on sieves. Less sample degradation and blinding. Comes with a limited one-year warranty. Capacity: Eight 8in (200mm) Diameter Full Height Or Fifteen Half-Height Sieves; Twelve 3in Diameter Full Height Or Twenty-Three Half-Height Sieves (Plus Pan and Cover). Motor: Electromagnetic Drive. Mechanical Timer: 1 to 60 Minutes With Automatic Shutoff Or Continuous Run. Dimensions: 10 Inch (254mm) Diameter Footprint By 7 Inch (178mm) Height (Excluding Sieve Stack). Weight: 36lbs (16.3kg). Warranty: Limited One-Year. Advantech® #: Meinz110.
