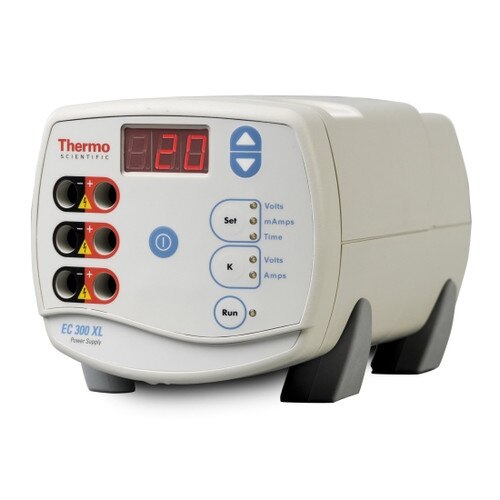

Thermo Scientific Owl® EC-300XL Compact Electrophoresis Power Supply System with 3 Output Jacks, Adjustable Voltage & Current, 120V
- EC-300XL compact power supply is designed to provide constant voltage or constant current output to apparatus used in electrophoresis applications
- Maximum voltage: 300V; Maximum current: 400mA; Maximum power: 75W
- One to three sets of electrophoresis cells can be connected in parallel and run simultaneously
- Features a soft-touch key pad with a large LCD display, 3 jacks, timed operation in either voltage or current modes and allows automatic completion in the event of a power loss
- Ideal for use with DNA/RNA and protein electrophoresis
- Sold individually
- Manufacturer Part No: TS-EC300XL
PLEASE NOTE: Product images and descriptions may not exactly represent the product. Prior to making your purchase, please confirm that the manufacturer part number shown above matches the product you seek. Returns are not allowed for such differences if the correct manufacturer part number is shipped.
Details
This Owl® EC-300XL compact power supply is simple to use, multi-purpose and lightweight. It is designed to provide constant voltage or constant current output to apparatus used in electrophoresis applications. It is ideal for use with DNA/RNA and protein electrophoresis. One to three sets of electrophoresis cells can be connected in parallel and run simultaneously. The EC-300XL can deliver up to 75W of total output power. When operating in constant voltage or constant current mode, the power supply automatically limits the other parameter to either the power supply maximum, or a lower limit if set by the user. If this non-constant limit is reached, the power supply will automatically switch control modes, from constant voltage to constant current, or vice versa. In this way, the EC-300XL protects your electrophoresis cells from damaging over power conditions. The EC-300XL power supply also provides for timed operation in either voltage or current modes and allows an automatic completion in the event of a power loss if enabled by the user. The supply features a power-off memory to retain settings after shut-down as well as a stackable design to save benchtop space. It also has a soft-touch key pad with a large LCD display and 3 jacks. Output Jacks: 3. Timed Run: 0 To 999 Minutes. Adjustable Voltage: 10 To 300V In 1V Steps. Adjustable Current: 4 To 400mA In 1mA Steps. Maximum Voltage: 300V. Maximum Current: 400mA. Maximum Power: 75W. Thermo Scientific Owl® #: EC-300XL.
Documents & Videos
This Owl® EC-300XL compact power supply is simple to use, multi-purpose and lightweight. It is designed to provide constant voltage or constant current output to apparatus used in electrophoresis applications. It is ideal for use with DNA/RNA and protein electrophoresis. One to three sets of electrophoresis cells can be connected in parallel and run simultaneously. The EC-300XL can deliver up to 75W of total output power. When operating in constant voltage or constant current mode, the power supply automatically limits the other parameter to either the power supply maximum, or a lower limit if set by the user. If this non-constant limit is reached, the power supply will automatically switch control modes, from constant voltage to constant current, or vice versa. In this way, the EC-300XL protects your electrophoresis cells from damaging over power conditions. The EC-300XL power supply also provides for timed operation in either voltage or current modes and allows an automatic completion in the event of a power loss if enabled by the user. The supply features a power-off memory to retain settings after shut-down as well as a stackable design to save benchtop space. It also has a soft-touch key pad with a large LCD display and 3 jacks. Output Jacks: 3. Timed Run: 0 To 999 Minutes. Adjustable Voltage: 10 To 300V In 1V Steps. Adjustable Current: 4 To 400mA In 1mA Steps. Maximum Voltage: 300V. Maximum Current: 400mA. Maximum Power: 75W. Thermo Scientific Owl® #: EC-300XL.
