BriskHeat® B00101080 XtremeFlex® B00 Standard Insulated Heat Tape, W x L: 1 x 96-Inch, 120V, Opposite End Leads
Item Number:H1800-11
Manufacturer Part No:BRH-B00101080
Manufacturer:BriskHeat
Units:Sold individually
Details
- Width: 1-inches (25mm); length: 96-inches (2440mm); total watts: 830; voltage: 120V
- Suitable only for non-conductive electrical surfaces (such as glass)
- Standard insulated heat tape is constructed of a knitted and double-braided fiberglass outer sheath cover
- Max exposure temperature: 900°F (482°C); power density: 8.6 watts/square inch (0.013 watts/square mm)
- Power leads on the opposite ends; includes high-temperature tie-downs for easy installation
- Sold individually

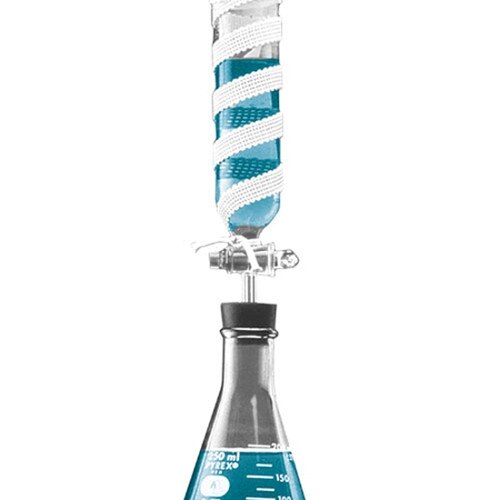

The BriskHeat® XtremeFLEX B00 Series standard insulated heat tape is suitable only for non-conductive electrical surfaces (such as glass). It is constructed of a knitted and double-braided fiberglass outer sheath cover. It has a single power lead on opposite ends and includes high-temperature tie-downs for easy installation. This tape provides exceptional flexibility and durability with rapid thermal response. A temperature controller is required (sold separately). Perfect for a wide range of applications including heating laboratory apparatus, gas tubing, temporary heat, valves and more. B00 Series standard insulated heat tape can tolerate a maximum exposure temperature of 900°F (482°C). The power density is 8.6watts/sq in (0.013watts/sq mm). Includes 24in (610mm) power leads with separable standard 2-prong power plug (NEMA 1-15). Requires Temperature Controller (Sold Separately). Material: Fiberglass, Knitted And Double-Braided. Maximum Exposure Temperature: 900°F (482°C). Power Density: 8.6w/sq in (0.013w/sq mm). Width: 1in (25mm). Length: 96in (2440mm). Total Watts: 830. Voltage: 120V. BriskHeat #: B00101080.
