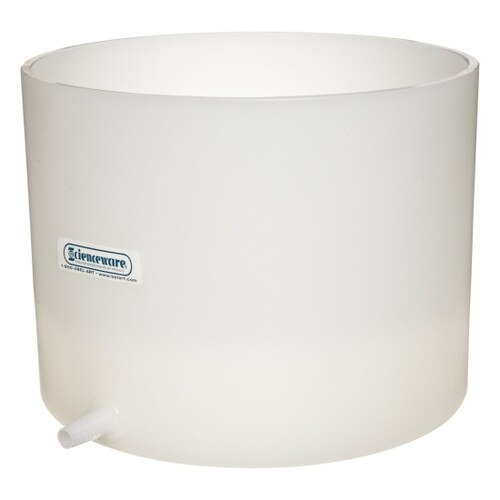

Bel-Art 146271457 Plastic Table Top Buchner Funnel with Perforated Removable Plate, I.D. x H: 18 x 11.5-Inch, HDPE
Item Number:BEL-H146271457
Manufacturer Part No:14627-1457
Manufacturer:ATS Life Sciences (formerly SP Bel-Art)
Units:Sold individually
Details
- Plastic Buchner funnel with removable filter plate allows easier cleaning and precious metals recovery.
- Manufactured with a removable HDPE plastic perforated filter plate with 3/16-Inch holes on 7/16-Inch centers.
- Filtering plate features a non-porous circumference to better fasten filter paper to the plate.
- Includes fixed integral vacuum connector fitting which accepts 1/2-Inch I.D. vacuum tubing.
- Inner Diameter: 457mm (18-Inch); Overall Height: 292mm (11.5-Inch); Rim to Plate Height: 229mm (9-Inch)
- Sold individually
Porous filter plate Buchner funnels are manufactured with a removable HDPE plastic perforated plate with 3/16-Inch holes on 7/16-Inch centers. The filtering plate is made from 1/4-Inch thick high density polyethylene with a non-porous circumference to better fasten filter paper to the plate. The filter plate is supported by a multiple ring grid to prevent displacement under vacuum. The funnel also features an integral vacuum connector fitting which accepts 1/2-Inch I.D. tubing. The tube fitting threads into a 3/4-Inch diameter NPT bung. HDPE plastic Buchner funnels are rated for use below 52° C (125° F).
