BriskHeat® SRX06243602PT4A SRX Hazardous Area Silicone Heater Blanket with Adhesive, T4A Rated, Thermostat Limit: 158°F (70°C), W x L: 6 x 24-Inch, 240V

This item is 240V; please verify this is the correct voltage for your needs.
Item Number:BRH-SRX06243602PT4A
Manufacturer Part No:BRH-SRX06243602PT4A
Manufacturer:BriskHeat
Units:Sold individually

Details

  • Hazardous area silicone heater blanket features high-limit thermostat designed to keep blanket below NEC article 500 T-rating.
  • Exclusive hazardous-area approval with a T4A rating and an actual high limit thermostat temperature of 158°F (70°C); Moisture, chemical and radiation resistant
  • Includes easy-to-apply industrial-strength pressure sensitive adhesive backing; Suitable for use on metal with a large range of surfaces like tanks, hoppers, conveyors and silos
  • Dimensions (W x L): 6 x 24-Inches (152 x 610mm); Voltage: 240V; Wattage: 360; Power Density: 2.5watts/sq -Inches (0.004watts/sq mm)
  • Includes 3/4-Inch conduit fitting and 12-inch silicone rubber power leads. Requires temperature controller. (Sold Separatey)
  • Sold individually

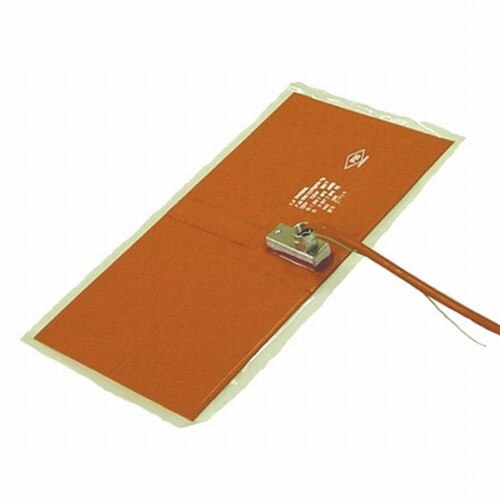

This 6 x 24-Inch BriskHeat® SRX silicone heater blanket is rated for use in hazardous areas. The high-limit thermostat is designed to keep the blanket below NEC article 500 T4A-rating temperature of 248°F (120°C) with an actual high limit thermostat of 158°F (70°C). Suitable for use on metal surfaces and a large range of surfaces like tanks, hoppers, conveyers, silos and more. It is moisture, chemical and radiation resistant with exceptional durability and comes with an easy-to-apply industrial-strength pressure sensitive adhesive backing. The patented heating element is laminated between two layers of 23mil and two layers of 25mil fiberglass-reinforced silicone rubber and is grounded to meet NEC 427.23. It has an exposure temperature range of -60°F to 400°F (-51°C to 204°C). The standard power density is 2.5watts/sq in (0.004watts/sq mm). The SRX hazardous area silicone heater blanket is equipped with 12-Inch silicone rubber-coatedpower leads with a bare wire connection and a 0.75in (19mm) conduit fitting. RoHS compliant and FM approved for Class I Division 2 Groups A, B, C and D and Class II Division 2 Groups F and G. Requires temperature controller (sold separately). Material: Fiberglass-Reinforced Silicone Rubber With Pressure Sensitive Adhesive Backing. Nominal Silicone Rubber Density Per Layer: 26oz/sq yd (881g/sq m). Silicone Rubber Power Leads: 12in (305mm). Conduit Fitting: 0.75in (19mm). Power Density: 2.5w/sq in (0.004watts/sq mm). Dielectric Strength: Over 2000V. Exposure Temperature Range: -60°F To 400°F (-51°C To 204°C). T-Rating: T4A. NEC Temperature: 248°F (120°C). Actual High Limit Thermostat: 158°F (70°C). Dimensions (W x L): 6 x 24in (152 x 610mm). Voltage: 240V. Wattage: 360. BriskHeat® #: SRX06243602PT4A.
