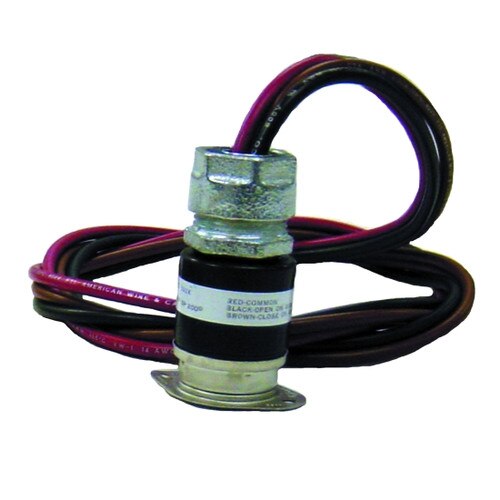

BriskHeat® TD101X-060 TD101 Hazardous Area Automatic On/Off Thermostat Temperature Controller with Conduit Fitting, Surface Mount, On/Off Range: 45°F (7°C)/60°F (16°C), 208/277V

Item Number:BRH-TD101X-060
Manufacturer Part No:TD101X-060
Manufacturer:BriskHeat
Units:Sold individually

Details

  • Surface mounting remote control thermostat is made for individual circuits requiring a weatherproof device
  • Designed for heat tracing and process fluid system applications. Ideal for use external alarm or and over-temperature limit switch in conjunction with another control system
  • Suitable for Class I Division 2 hazardous-area use. Includes 1/2-Inch NPT flexible conduit fitting.
  • Features single-pole double throw (SPDT) contacts with a temperature-sensitive bimetal disc and a hermetically sealed housing
  • On/Off Temperature Range Min/Max Range: 45°F (7°C) to 60°F (16°C). Voltage: Up to 277VAC. Amperage: 25amps.
  • Sold individually
The BriskHeat® TD101 thermostat temperature controller is designed with an integral 1/2-Inch NPT flexible conduit fitting which makes it suitable for Class I Division 2 hazardous-area use. This is the ideal remote control temperature controller for individual hjeating applications requiring a weatherproof devices. This thermostat regulated temperature controller is designed with an "ON" setting of 45°F (7°C) and an "OFF" setting of 60°F (16°C). BriskHeat TD101 temperature controllers are ideal for temperature control in heat tracing and process fluid system applications or as an external alarm or over-temperature limit switch in conjunction with another control system. Temperature controller includes a single pole double throw (SPDT) with a bi-metal sensor disc and a hermetically sealed housing. Surface mount design mounts directly to the heated surface. Includes 4-foot power lead. Suitable For Class I Division 2 Hazardous-Area Use. On Setting: 45°F (7°C). Off Setting: 60°F (16°C). Voltage: Up To 277. Amperage: 25. Power Lead Length: 4ft (1.2m). Feature: Integral 0.5in (13mm) NPT Flexible Conduit Fitting. Average Accuracy: ± 15°F (8°C). Maximum Exposure Temperature: 221°F (105°C). BriskHeat® #: TD101X-060.
