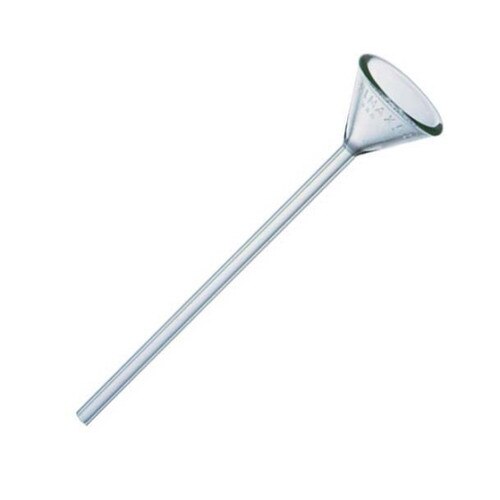

Kimble® 28900-75 KIMAX® 75mm 58° Angle Plain Glass Analytical Funnel with 150mm Long Stem

  • KIMAX® funnel is constructed with heavy uniform walls, strong molded rims, and fire polished stems to give a long service life
  • Funnels have a high resistance to chemical attack, and mechanical and thermal shock
  • The 58° funnel angle is a Kimble® exclusive, formed to an exact angle for rapid filtration
  • Designed from ASTM Specification E1095, Type 1, Class B requirements
  • Measures 75mm inner diameter at the funnel top, with an outer diameter of 8mm at the stem ; approximate cone volume is 90mL; fits paper with a 125mm diameter
  • 12/Pack; 48/Case
  • Manufacturer: DWK Life Sciences Inc. (Kimble Chase)
  • Manufacturer Part No: KIM-28900-75
(0) No Reviews yet
Item Number: F4430-5
$520.12

Sold in: Cases

UnitMSRPYour PriceStock StatusQty
Case596.64520.12Lead Time

New

Details

KIMAX® Long stem funnel is constructed with heavy uniform walls, strong molded rims and fire polished stems to give a long service life. The funnels have a high resistance to chemical attack and mechanical and thermal shock. The 58° funnel angle is a Kimble exclusive, formed to an exact angle for rapid filtration. A piece of filter paper, when folded to form the filtering cone, forms a precise 60° angle. If the funnel is also 60°, as are the vast majority, then the only effective filtering area is down near the tip. The exclusive KIMAX® 58° funnel promotes faster, more effective filtering because the cone is suspended by its uppermost edge, leaving most of the conical area for filtration. Designed from ASTM Specification E1095, Type 1, Class B requirements. Approx. Internal Diameter at Top: 75mm. Fits Paper with Diameter: 125mm. Cone Volume: 90mL. Length of Stem: 150mm. Approx. Outer Diameter of Stem: 8mm. 12/Pack; 48/Case. Kimble® #: 28900-75.

Documents & Videos

KIMAX® Long stem funnel is constructed with heavy uniform walls, strong molded rims and fire polished stems to give a long service life. The funnels have a high resistance to chemical attack and mechanical and thermal shock. The 58° funnel angle is a Kimble exclusive, formed to an exact angle for rapid filtration. A piece of filter paper, when folded to form the filtering cone, forms a precise 60° angle. If the funnel is also 60°, as are the vast majority, then the only effective filtering area is down near the tip. The exclusive KIMAX® 58° funnel promotes faster, more effective filtering because the cone is suspended by its uppermost edge, leaving most of the conical area for filtration. Designed from ASTM Specification E1095, Type 1, Class B requirements. Approx. Internal Diameter at Top: 75mm. Fits Paper with Diameter: 125mm. Cone Volume: 90mL. Length of Stem: 150mm. Approx. Outer Diameter of Stem: 8mm. 12/Pack; 48/Case. Kimble® #: 28900-75.
