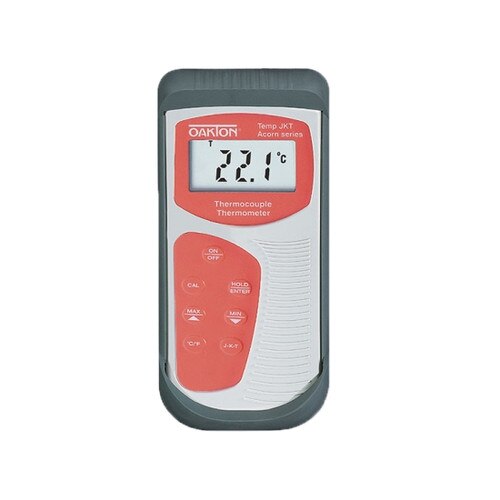

Oakton® WD-35627-00 Acorn™ Temp J/K/T Portable Thermocouple Thermometer, Dual Range: -250 to 1372°C/-418 to 2501°F
Item Number:OAK-WD-35627-00
Manufacturer Part No:EW-35627-00
Manufacturer:Oakton Instruments (Antylia Scientific)
Details
- Use with Type J, K or T thermocouple probes for a -250 to 1372°C range
- MIN/MAX displays highest/lowest temperature since meter was switched on; or use MIN/MAX HOLD to continuously update lowest/highest temperature
- Includes °C/°F selectable, Offset temperature calibration adjustment, old; Auto-off function
The Acorn Temp TC meter offers a wide -250 to 1372°C range. Use with any type J - K - or T thermocouple probes. Splash-resistant membrane keypad helps protect meter components from occasional spills. The large LCD gives you a clear reading at a glance - and warns user of low-battery conditions or calibration errors. Use with Type J - K or T thermocouple probes for a -250 to 1372°C range. Specification: Range: Type J -200 to 1000°C (-328 to 1832°F) - Type K -250 to 1372°C (-418 to 2501°F) - Type T -250 to 400°C (-418 to 752°F); Resolution: 0.1°C/°F from -299.9.9°C/°F to 299.9.9°C/°F 1°C/°F outside this range; Accuracy: +/- 0.25% of reading plus 1°C/2°F for temp -99.9°C/°F; Input connector: standard miniconnector; Display: single line LCD; Operating Temperature: 0 to 50°C (32 to 122°F); Power: 4 x 1.5 V AAA batteries; Probe: accepts thermocouple probe with miniconnector (not included); Dimensions: 5.5' x 2.7' x 1.3' (14 x 7 x 3.5 cm). Oakton #: WD-35627-00
