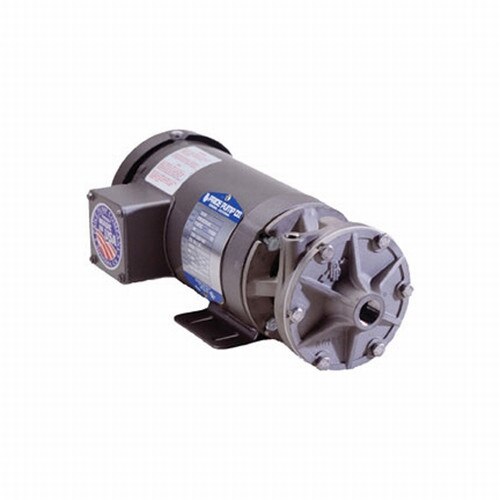

Thermo Scientific Barnstead 1 Horsepower Distribution Pump With Tin Bypass, 115/230 VAC (50/60Hz)
Item Number:BAR-H1130
Manufacturer Part No:TS-H1130
Manufacturer:Thermo Scientific Barnstead
Units:Sold individually
Details
- Pump motor: 1 horsepower; pump speed: 3450rpm; electrical: 115/230 VAC (50/60Hz); phase: 1; pump bypass material: tin
- Pump suction: 3/4 inch; pump discharge: 1/2 inch; distribution outlet: 3/4 inch; bypass return: 1/4 Inch
- Used with purified water storage tanks when it is necessary to keep the pure water under pressure for delivery to locations above tank level or at greater than gravity flow pressure
- Purity is maintained with nonreactive wetted parts
- Comes with a heavy duty, totally enclosed, split-phase induction motor (motor starter is not included); all external wiring must be done by the customer
- Sold individually
This Thermo Scientific Barnstead 1 horsepower distribution pump with tin bypass is used with purified water storage tanks when it is necessary to keep the pure water under pressure for delivery to locations above tank level or at greater than gravity flow pressure. Includes a tin pump bypass with restrictive orifice for the tank and a low-level cutoff switch to shut the pump off on the storage tank when there are low water conditions. Purity is maintained with nonreactive wetted parts. Pump has a heavy duty, totally enclosed, split-phase induction motor. Motor starter is not included; all external wiring must be done by the customer. Pump Motor: 1 Horsepower. Pump Speed: 3450rpm. Electrical: 115/230 VAC (50/60Hz). Phase: 1. Pump Bypass Material: Tin. Pump Suction: 3/4 Inch. Pump Discharge: 1/2 Inch. Distribution Outlet: 3/4 Inch. Bypass Return: 1/4 Inch. Per each. Barnstead #: H1130
