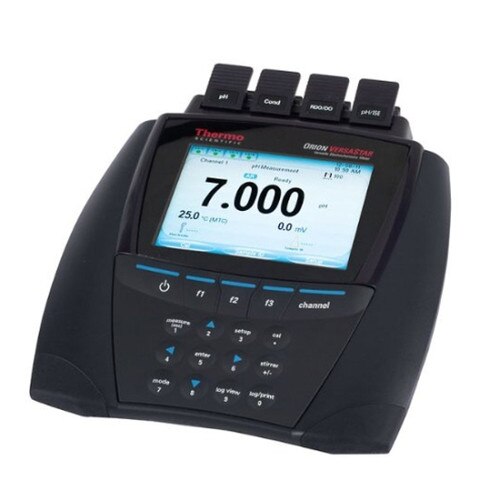

Thermo Scientific Orion VSTAR-LR VERSA STAR™ pH with LogR™ Module For VERSA STAR™ Meters
- VERSA STAR pH/mV/Temperature with LogR technology module easily connects into VERSA STAR meters
- pH/Temperature module allows up to 5 point pH calibration with automatic recognition for USA/NIST and DIN buffers
- Allows for fixing of calibration errors without a complete recalibration with calibration editing
- LogR technology provides the benefits of the most advanced electrode diagnostics and no temperature sensor needed to get temperature compensated pH readings
- No need to turn off your meter to switch modules –meter automatically recognizes module changes
- Sold individually
- Manufacturer Part No: ORI-VSTAR-LR
PLEASE NOTE: Product images and descriptions may not exactly represent the product. Prior to making your purchase, please confirm that the manufacturer part number shown above matches the product you seek. Returns are not allowed for such differences if the correct manufacturer part number is shipped.
Details
This Thermo Scientific Orion VERSA STAR pH/mV/Temperature with LogR technology module easily connects into VERSA STAR meters. The pH/Temperature module allows up to 5 point pH calibration with automatic recognition for USA/NIST and DIN buffers. It also allows for fixing of calibration errors without a complete recalibration with calibration editing. The LogR technology provides the benefits of the most advanced electrode diagnostics and no temperature sensor needed to get temperature compensated pH readings. No need to turn off your meter to switch modules –meter automatically recognizes module changes. pH—Range: -2.000 to 20.000. Resolution: 0.1, 0.01, 0.001. Relative Accuracy: ±0.002. Calibration Points: Up to 6. Calibration Editing: Yes. Adjustable ISO Point: Yes. mV/RmV—Range: ±2000.0 mV. Resolution: 0.1. Relative Accuracy: ±0.2 mV or ±0.05 % of reading whichever is greater. EH ORP Mode: Yes. LogR Temperature—Range: 0 to 100 °C, 32 to 212 ºF. Resolution: 0.1. Relative Accuracy: ±0.5. Resistance Range: 0 to 6000 M?. Resistance Resolution: 0.1 M? up to 1999.9 M?, 1 M? above 1999.9 M?. Offset Calibration: 1 point. Calibration Options: ATC probe, NIST reference. Temperature Measurement without LogR In-Use—Range: -5 to 105 °C, 23 to 221 ºF. Resolution: 0.1. Relative Accuracy: ±0.1. Offset Calibration: 1 point. Inputs--pH: BNC, reference pin; ATC: 8-pin mini-DIN. Thermo Scientific Orion #: VSTAR-LR.
