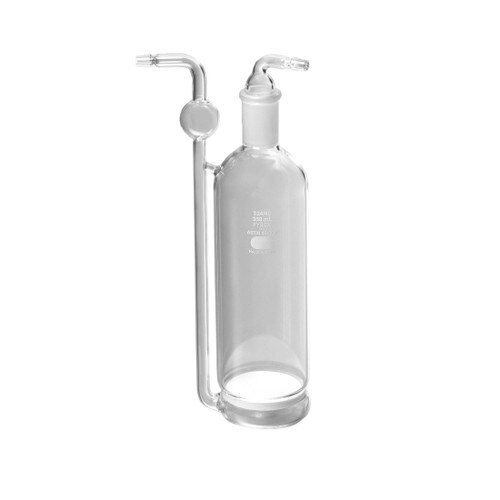

Corning® 31750-350C PYREX® 350mL Gas Washing Bottle with Side Inlet & Coarse Fritted Disc (40-60µm), 24/40 [ST] Top Joint
Item Number:COR-31750-350C
Manufacturer Part No:31750-350C
Manufacturer:Corning Life Sciences
Units:Sold individually
Details
- Gas washing bottle has a capacity of 350mL, with an outer diameter of 70mm and a height of 290mm without the stopper
- Made of borosilicate glass code 7740
- Side inlet tube has a rod sealed to the bottle near the top for extra strength; a 24/40 standard taper stopper is used to seal the outlet tube to the base
- Coarse fritted disc has a nominal pore distribution of 40 to 60µm and a disc diameter of 60mm
- Non-sterile, reusable bottle is for washing and drying gases, and to humidify carbon dioxide-air mixtures for maintaining high humidity in gassed cell culture incubators
- Sold individually
This 350mL PYREX® gas washing bottle with side inlet and fritted disc provides an inexpensive but effective method for washing and drying gases. Sidearm tubulation has an outer diameter of 10mm. The side inlet tube on this bottle has a rod sealed to the bottle near the top for extra strength. A 24/40 standard taper stopper is used to seal the outlet tube to the base. This bottle is a very effective way to humidify carbon dioxide-air mixtures for maintaining high humidity in gassed cell culture incubators. The gas enters the bottle through the top of the outside vertical tube which connects to a 60mm diameter coarse fritted disc at the bottom of the bottle below the surface of the washing medium. After bubbling through the medium, the gas is removed via the sidearm of the bottle stopper. The large diameter fritted disc permits the handling of large volumes of gas and provides greater efficiency and more uniform dispersion of gas bubbles for complete absorption. This coarse frit has a nominal pore distribution of 40 to 60µm. Non-Sterile. Reusable. Material: Borosilicate Glass Code 7740. Capacity: 250mL. Bottle Style: Gas Washing. Top Style: Standard Taper Joint. Bottle Shape: Cylindrical. Standard Taper Joint: 24/40. Porosity: Coarse (40 To 60µm). Height With Stopper: 360mm. Height Without Stopper: 290mm. Outer Diameter: 70mm. Disc Diameter: 60mm. Inlet/Outlet Tube Outer Diameter: 10mm. Corning® #: 31750-350C.
