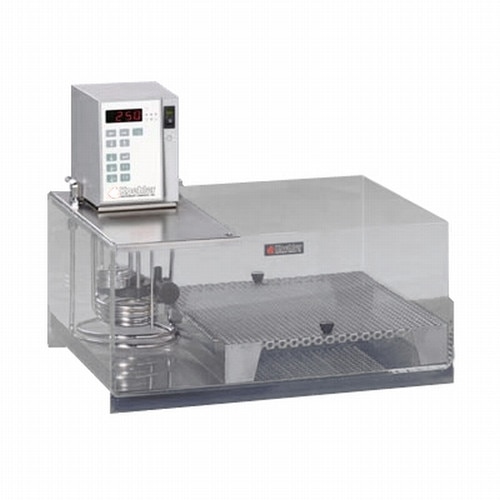

Koehler Instruments® K95690 220 - 240V Constant Temperature Bath

220 - 240V Constant Temperature Bath. Constant temperature water bath for conditioning samples prior to a penetration test. Full visibility bath has a large shelf to accommodate a wide range of sample containers, including all containers used in ASTM tests. Sample containers can be left in the bath during the penetration test if required. The base of the Koehler manual penetrometer can be placed directly on the shelf of the bath, or the head assembly of the digital automatic model can be reversed to overhang the bath. Temperature Range: Ambient to 70°C. Microprocessor digital temperature control maintains bath liquid temperature with ±0.05°C stability throughout the operating range. A large LED provides bath temperature readout in switchable °C/°F format and a dual-speed circulating pump assures temperature uniformity. A separate adjustable overtemperature thermostat and a low liquid cut-off protect the bath. A built-in cooling coil is provided for circulating a refrigerated coolant or tap water if needed. Conforms to: ASTM D5, D217, D937, D1403, D1321 and D2884. Dimensions (L x W x H): 18 x 13 x 8.5". 220 - 240V. 50/60Hz. Shipping weight: 10lb (4.5kg). Koehler #: K95600.
