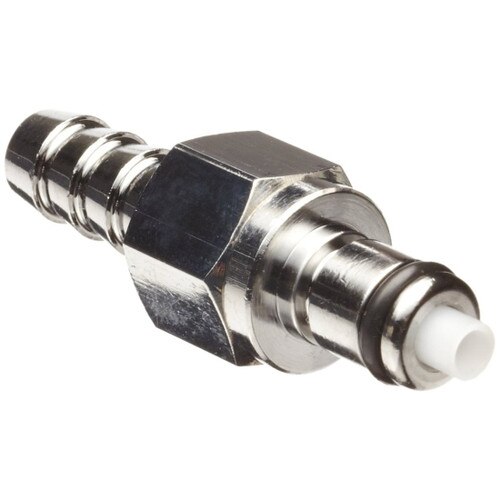

Bel-Art 197240204 Stat-O-Lok™ Quick Disconnect Male Tubing Coupling for 1/4-Inch I.D. Tubing, Chrome-Plated Brass
Item Number:T8961-3
Manufacturer Part No:19724-0204
Manufacturer:ATS Life Sciences (formerly SP Bel-Art)
Units:Sold individually
Details
- Male end coupling with hose barb end accepts PVC, latex and other types of flexible tubing. Fits 1/4-Inch (6mm) I.D. Tubing.
- Connects with matching 1/4-Inch female Quick Disconnect coupling. (See Item #: T8961-4 (Bel-Art #: 197240804)
- Max Operating Temperature: 82° C (180° F). Max Pressure: Up to 1.7Mpa (250psi). Max Vacuum: Up to 30 microns of Mercury (Hg).
- Ideal for liquid and gas tubing connections in biomedical instrumentation and general industrial applications
- Sliding lock mechanism for leak-free, in-line gas or liquid flow which immediately shuts off when disconnected.
- Sold individually
The Stat-O-Lok™ quick disconnect tubing connecter is designed for single-handed, no mess tubing hook-ups. These chrome plated brass tubing connector is fitted with a Buna-N O-ring. Designed with a sliding lock mechanism for leak-free, in-line gas or liquid flow which immediately shuts off when disconnected. Ideal for liquid and gas connections in biomedical instrumentation and general industrial applications. Sold individually. Bel-Art® #: F197240204.
