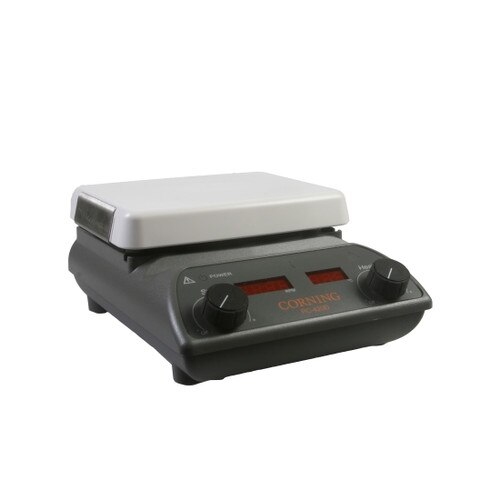

Corning® 6797-420D PC-420D Digital Hot Plate Stirrer with 5 x 7-Inch Pyroceram® Plate, Variable Speed, 100V

NOTICE: While we make every effort to accurately report lead times, unfortunately, Corning products often have a prolonged ship date/lead time. Please be aware before ordering this Corning item.

Cancelled orders will incur a 10% cancellation fee imposed by Corning, so keep this in mind before ordering.
  • Hot plate/stirrer offers closed-loop stirring for consistent and accurate speed; stir range of 60 to 1150 RPM, and top size of 4.4 x 5.8 x 7.3 inches
  • Digital LED temperature display is adjustable in 5°C increments and blinks until set temperature is reached; stronger, larger magnet improves stir bar coupling with automatic ramp up speed
  • Microprocessor maintains consistent and repeatable temperature settings from 5°C (if ambient temperature is 0°C or lower) up to 550°C
  • Operates on 100V/60Hz, 6.3 amperage, 623W with a standard US three-prong plug to meet needs in Japan and other locations with similar requirements
  • Sold individually
  • Manufacturer Part No: COR-6797-420D
(0) No Reviews yet

PLEASE NOTE: Product images and descriptions may not exactly represent the product. Prior to making your purchase, please confirm that the manufacturer part number shown above matches the product you seek. Returns are not allowed for such differences if the correct manufacturer part number is shipped.

Item Number: COR-6797-420D
$693.34

Sold in: Eaches

UnitMSRPYour PriceStock StatusQty
Each730.67693.34Lead Time

New

Details

The Corning® PC-420D stirring hot plate has a durable glass-ceramic 5 x 7 inch (12.7 x 17.8cm) Pyroceram® top and digital temperature and stirring speed displays. It is designed to operate on 100V/60Hz with a standard US three-prong plug for use in Japan and other areas with similar electrical requirements. Microprocessor maintains consistent and repeatable temperature settings from 5°C (if ambient temperature is 0°C or lower) up to 550°C. Digital LED temperature display is adjustable in 5°C increments and blinks until set temperature is reached. Optional external temperature controller (available separately) truly controls temperature inside the vessel and eliminates the need to closely monitor liquid temperature. Exclusive closed-loop stirring control monitors and regulates the stirring speed from 60-1150 RPM for aqueous, viscous, or semi-solid solutions. Stronger, larger magnet improves stir bar coupling combined with automatic ramp up speed adjustment minimizes decoupling. Bright LED hot top icon lights up when top plate is over 60°C,even when the unit is turned off. Separate temperature sensor provides power cutoff if unit overheats. Two piece casting design deflects spills away from electronics and includes a built in mount for an optional 18 inch (45.7cm) support rod. This is the suggested replacement for Corning® Item Number 6797-420. Number of Stirring Positions: 1. Top Size: 4.25 x 7.55 x 11 Inches (10.8 x 19.7 x 28cm). Top Material: Pyroceram® Glass-Ceramic. Stir Range: 60 To 1150 RPM. Power: 100V, 60Hz. Amperage: 6.3. Watts: 623. Dimensions (L x W x H): 4.25 x 7.55 x 11 Inches. Weight: 3.2kg. Corning® #: 6797-420D.

Documents & Videos

The Corning® PC-420D stirring hot plate has a durable glass-ceramic 5 x 7 inch (12.7 x 17.8cm) Pyroceram® top and digital temperature and stirring speed displays. It is designed to operate on 100V/60Hz with a standard US three-prong plug for use in Japan and other areas with similar electrical requirements. Microprocessor maintains consistent and repeatable temperature settings from 5°C (if ambient temperature is 0°C or lower) up to 550°C. Digital LED temperature display is adjustable in 5°C increments and blinks until set temperature is reached. Optional external temperature controller (available separately) truly controls temperature inside the vessel and eliminates the need to closely monitor liquid temperature. Exclusive closed-loop stirring control monitors and regulates the stirring speed from 60-1150 RPM for aqueous, viscous, or semi-solid solutions. Stronger, larger magnet improves stir bar coupling combined with automatic ramp up speed adjustment minimizes decoupling. Bright LED hot top icon lights up when top plate is over 60°C,even when the unit is turned off. Separate temperature sensor provides power cutoff if unit overheats. Two piece casting design deflects spills away from electronics and includes a built in mount for an optional 18 inch (45.7cm) support rod. This is the suggested replacement for Corning® Item Number 6797-420. Number of Stirring Positions: 1. Top Size: 4.25 x 7.55 x 11 Inches (10.8 x 19.7 x 28cm). Top Material: Pyroceram® Glass-Ceramic. Stir Range: 60 To 1150 RPM. Power: 100V, 60Hz. Amperage: 6.3. Watts: 623. Dimensions (L x W x H): 4.25 x 7.55 x 11 Inches. Weight: 3.2kg. Corning® #: 6797-420D.
