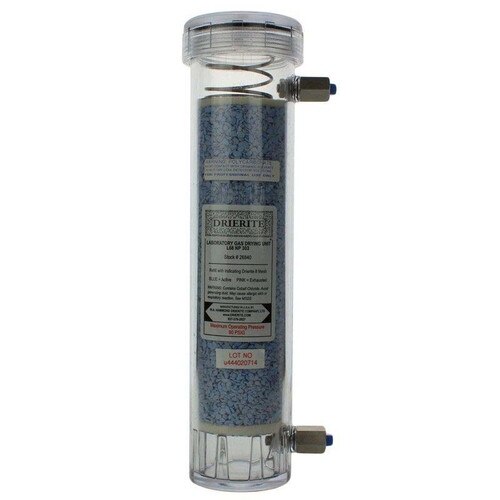

DRIERITE® 26840-CS Laboratory Gas Drying Unit with 1/8-Inch SS NPT Fittings, Filled with 8-Mesh Indicating DRIERITE® (Case of 6)
Details
- Dries both air and gases saturated with moisture to a dew point level of approximately –73°C (–100°F)
- Includes ~567g (1.25-Lbs of 8-Mesh Indicating Drierite® desiccant.
- Hose Barb Fittings: 1/8-Inch Stainless Steel NPT Fittings
- O.D. x Height 2.62 x 11.38-Inches. Molded polycarbonate column with stainless-steel desicant supports and coil spring.
- Recommended Flow Rate: 200L/Hour or 0.1 scfm for Maximum Efficiency; Pressure Drop: <0.01 psi at 200 lph; Water Capacity: 50g.
- Case of 6
W.A. Hammond Drierite® gas drying units dry both air and gases saturated with moisture to very low dew point levels. These gas drying units are filled with approximately 567g of Drierite® 8-mesh indicating desiccant. Indicating desiccant can be easily regenerated by heating the desiccant on a tray at at 210 to 220°C for 1 hour in a single layer. Once exhausted, the same desiccant can easily be replaced with a fresh batch of indicating desiccant. Use in virtually any air or gas application which includes sample prep, blanketing, protection of lab instruments & equipment, gas purging, vacuum release, reaction mixtures or dry air venting.
Drierite® indicating desiccant provides visual proof by means of color change that the desiccant is absorbing moisture. The desiccant is a blue color when active and a pink color when exhausted. The zone between the two colors in the column may be a purple color and should be a sharp narrow band when the flow rate is at equilibrium. Regeneration by re-heating the desiccant will restore the drying capacity and the color back from pink to blue when fully dried.
Documents & Videos
W.A. Hammond Drierite® gas drying units dry both air and gases saturated with moisture to very low dew point levels. These gas drying units are filled with approximately 567g of Drierite® 8-mesh indicating desiccant. Indicating desiccant can be easily regenerated by heating the desiccant on a tray at at 210 to 220°C for 1 hour in a single layer. Once exhausted, the same desiccant can easily be replaced with a fresh batch of indicating desiccant. Use in virtually any air or gas application which includes sample prep, blanketing, protection of lab instruments & equipment, gas purging, vacuum release, reaction mixtures or dry air venting.
Drierite® indicating desiccant provides visual proof by means of color change that the desiccant is absorbing moisture. The desiccant is a blue color when active and a pink color when exhausted. The zone between the two colors in the column may be a purple color and should be a sharp narrow band when the flow rate is at equilibrium. Regeneration by re-heating the desiccant will restore the drying capacity and the color back from pink to blue when fully dried.
