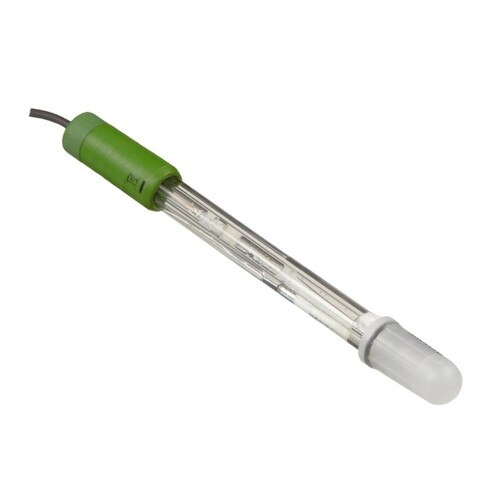

HANNA HI1053P Refillable Combination pH Electrode with Pin, Conical Tip, Triple Junction, Body: Glass, Junction: Ceramic, Connection: BNC
Item Number:HAN-HI1053P
Manufacturer Part No:HI1053P
Manufacturer:Hanna Instruments
Details
- The HI1053P is a glass body, refillable, double junction pH electrode with a BNC and pin connector
- The pin connector is used to enable the CAL Check function of the HI2221, HI2222, and HI2223 benchtop meters
- This electrode has a triple ceramic junction in the outer reference cell and the conical pH sensing portion is made with low temperature glass.
- This design consideration is ideal for emulsions, fats and creams, soil and semi-solid samples, low conductivity solutions, and for measuring samples at cooler temperatures
- The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in food products including meat, cheese, yogurt, and milk
| SKU | HI1053P |
| Description | refillable, combination pH electrode w/ conical tip |
| Reference | double, Ag/AgCl |
| Junction / Flow Rate | ceramic, triple / 40-50 µL/h |
| Electrolyte | KCl 3.5M |
| Max Pressure | 0.1 bar |
| Range | pH: 0 to 12 |
| Recommended Operating Temperature | -5 to 70°C (23 to 158°F) - LT |
| Tip / Shape | conic (12 x 12 mm) |
| Temperature Sensor | no |
| Amplifier | no |
| Body Material | glass — LT |
| Cable | coaxial; 1 m (3.3’) |
| Recommended Use | fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions |
| Connection | BNC + pin* |
| Special Note | * For pH meters with CAL Check system |
