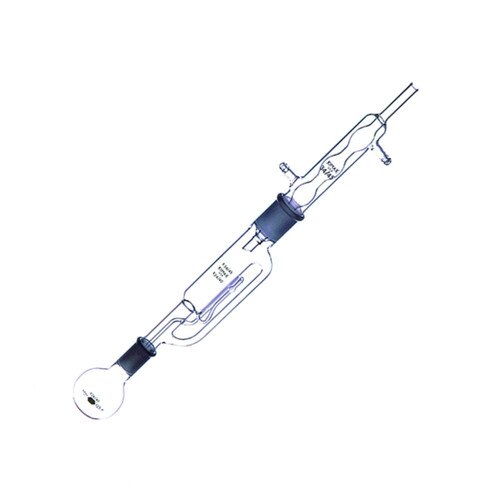

Kimble® 24005-30 KIMAX® 125mL Complete Soxhlet Extraction Apparatus with Allihn Condenser and Boiling Flask

Item Number:E1442-30
Manufacturer Part No:24005-30
Manufacturer:DWK Life Sciences Inc. (Kimble Chase)
Units:Sold individually

Details

  • A soxhlet extractor is a piece of laboratory apparatus invented in 1879 by Franz von Soxhlet, originally designed for the extraction of a lipid from a solid material
  • Not limited to the extraction of lipids; typically, a soxhlet extraction is only required where the desired compound has a limited solubility in a solvent and the impurity is insoluble in that solven
  • If the desired compound has a high solubility in a solvent then a simple filtration can be used to separate the compound from the insoluble substance
  • Approximate 125mL capacity is measured to base of the flask neck; ground glass join between the soxhlet tub and the flask is 24/40; hose connections on the condenser accept 5/16-inch I.D. flexible tubing
  • Accomodates thimble size of 25x85mm and 30mm I.D. extraction tube; overall height = 565mm; siphon tube approx. height = 73mm; 43mL capacity of tube to top of siphon
  • Sold individually
Approximate 125mL capacity is measured to the base of the flask neck. Ground glass joint between the Soxhlet tube and the flask is 24/40. Hose connections on the condenser accept 5/16-inch I.D. flexible tubing. Accommodates 25 x 85mm extraction thimbles. Height = 565mm. Kimble® #: 24005-30.
