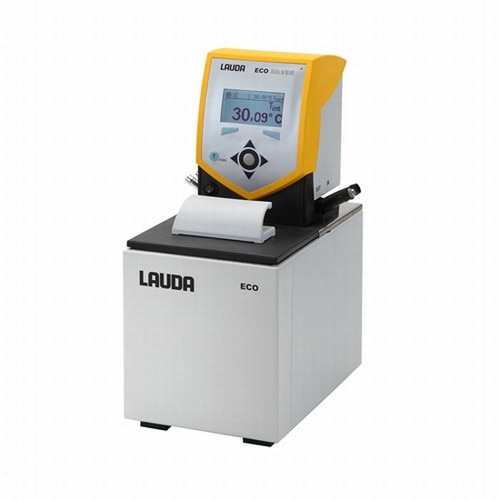

LAUDA-Brinkmann® L001191 Model ECO E 4 S Stainless Steel Heating Circulating Water Bath with ECO Silver Thermostat Control, Range: 20 To 150C, Filling Volume: 3 to 3.5L, 115V/60Hz (Formerly Item# LCB 4736)

This LAUDA® ECO E 4 S Heating Circulator with a stainless steel bath has a filling volume of 3.0 to 3.5L and a temperature range of 20 to 150°C. It is equipped with an ECO Silver Control Head that has 1.3kW heating power. The stainless steel bath has a drain valve on the back for easy and safe changing of heat exchange liquids. The ECO Silver Control Head is fitted with a monochrome LCD display and features a programmer with one program and 20 segments. The Vario pressure pump with six levels can be set to various output stages. A 1-point calibration of the thermostat can be carried out by the user. Standard equipment includes a mini-USB interface and a cooling coil. The E 4 S is also fitted with a bath cover and pump connections for external applications with 13mm nipples made from plastic. Applications include precise temperature regulation in quality assurance and analytics, sample preparation in chemistry and pharmacy, temperature control in electronics and life sciences, and cooling in material tests. It is designated Safety Class II, FL for use with flammable liquids. Bath Material: Stainless Steel. Control Head Type: ECO Silver. Temperature Range: 20 To 150°C. Temperature Stability: +/- 0.01K. Heater Power: 1.3kW. Pump Type: Vario. Maximum Pump Pressure: 0.55bar. Maximum Pump Flow: 22L/min. Bath Volume: 3.0 To 3.5L. Bath Opening: 135 x 105mm. Bath Depth: 150mm. Useable Depth: 130mm. Height To Top Of Bath: 196mm. Overall Height With Heating Thermostat: 376mm. Dimensions: 168 x 272 x 376mm. Power Supply: 115V/60Hz. Weight: 6.6kg. Loading: 1.4kW.
