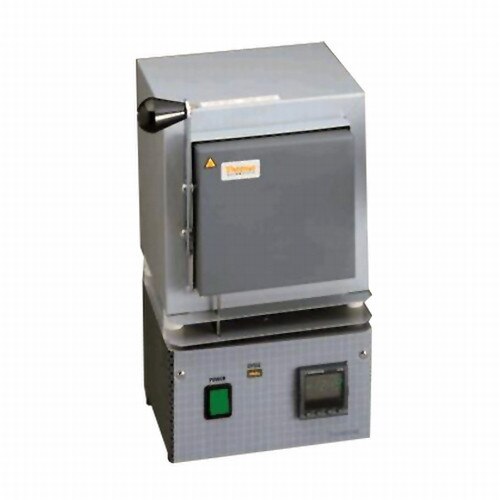

Thermo Scientific® FB1315M Thermolyne® Portable Muffle Furnace, Temperature Range: 100 to 1100°C, Capacity: 1.3L, 120V
- 100 to 1100°C
- Single setpoint
- 0.04 cu. ft.
- 120V 50/60Hz, 8.8A, 1060w
- Manufacturer Part No: TS-FB1315M
PLEASE NOTE: Product images and descriptions may not exactly represent the product. Prior to making your purchase, please confirm that the manufacturer part number shown above matches the product you seek. Returns are not allowed for such differences if the correct manufacturer part number is shipped.
Details
120V 1.3L Muffle Furnace. The FB1300 series portable muffle furnace by Thermolyne® is equipped with ceramic fiber insulation which permits faster heat-up and reduces energy consumption. An embedded heating element on top and both sides improves temperature uniformity. Drop-down door doubles as a convenient shelf for loading and unloading. It features digital single set point control with a single display which shows actual temperature or the set point. It also has safety features like open-door power shut-off and thermocouple break protection. Includes chamber monitoring port for independent temperature measuring device monitoring. Shipped complete with power cord. Capacity: 1.3 L (76 cu. in.). Chamber Dimensions (W x H x D): 4 x 3.8 x 5". Operating Temperature: 100° to 1100°C. Uniformity @ 1000° C: ±7.8°C. Stability @ 1000°C: ±0.3° C. 120V. Shipping weight: 20lb. Thermolyne #: FB1315M.
