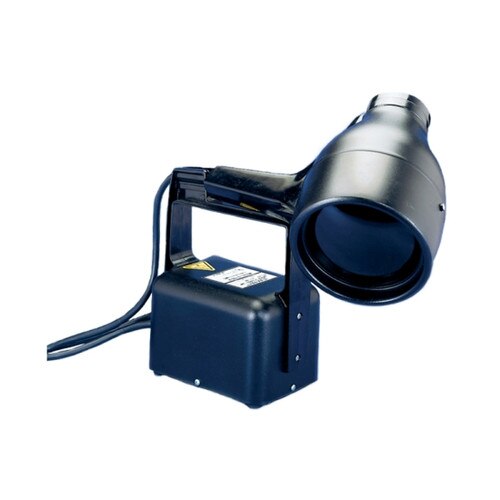

UVP® 95-0044-04 Blak-Ray® B-100A/R High-Intensity UV Inspection Lamp with Cord Holder, 100-watt, 365nm Longwave, 230V
Electrical Requirements: 230V
Please verify this is the correct voltage for your needs before ordering.
Please verify this is the correct voltage for your needs before ordering.
Item Number:UVP-95-0044-04
Manufacturer Part No:95-0044-04
Manufacturer:Analytik Jena: UVP - Ultraviolet Products
Units:Sold Individually
Details
- Blak-Ray® UV lamp with cord holder, offers brilliant irradiance for optimum fluorescence
- B-100A/R Model; 8.5 D x 5.5-Inch Diameter lamp head; 365nm Longwave UV source; 20 ft. cord length; 230V; 100w
- Applications in non destructive testing and fluorescence inspection
- 100w spot bulb is rated at 5000 hours
- Handle fits into the transformer base allowing the lamp head to rotate a full 360 degrees
- Sold Individually
This Blak-Ray® UV lamp with cord holder, offers brilliant irradiance for optimum fluorescence. Features 100w of 365nm longwave UV which is excellent for many applications including inspection purposes. Manufactured with a scratch resistant, powder painted aluminum lamp head. The handle fits into the transformer base for hands-free use allowing the lamp head to rotate a full 360 degrees. It has 20 ft. primary and secondary cords for additional mobility. Two cord holders (on two sides of the ballast) keep slack cord under control. Applications in non destructive testing and fluorescence inspection. A 100w spot bulb is rated at 5000 hrs. B-100A/R Model. 8.5 D x 5.5in dia. Lamp Head. Aluminum Housing. 365nm Longwave UV Source. 21,700/8,900µW/cm² Intensity at 2/10in. 20 ft. Cord Length. 11.72 lb. Weight. 230V. 100w. UVP® #: 95-0044-04.
Documents & Videos
This Blak-Ray® UV lamp with cord holder, offers brilliant irradiance for optimum fluorescence. Features 100w of 365nm longwave UV which is excellent for many applications including inspection purposes. Manufactured with a scratch resistant, powder painted aluminum lamp head. The handle fits into the transformer base for hands-free use allowing the lamp head to rotate a full 360 degrees. It has 20 ft. primary and secondary cords for additional mobility. Two cord holders (on two sides of the ballast) keep slack cord under control. Applications in non destructive testing and fluorescence inspection. A 100w spot bulb is rated at 5000 hrs. B-100A/R Model. 8.5 D x 5.5in dia. Lamp Head. Aluminum Housing. 365nm Longwave UV Source. 21,700/8,900µW/cm² Intensity at 2/10in. 20 ft. Cord Length. 11.72 lb. Weight. 230V. 100w. UVP® #: 95-0044-04.
